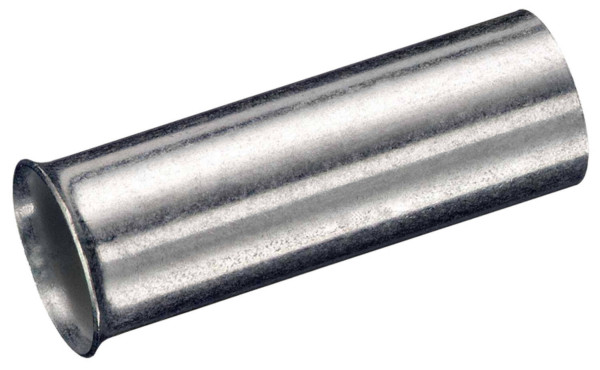

Uninsulated wire end ferrules

Advantages

Free shipping from € 129,- order value
Shipping within 24h*
30 days money back guarantee

Quantity	Unit price (per PU)	Base price
to 9	€9.85 *	€9.85 * / 1000 piece
from 10	€9.15 *	€9.15 * / 1000 piece

Content: 1000 piece

*Prices incl. statutory VAT plus shipping costs

Ready for shipment immediately, delivery time approx. 1-3 working days

Cross-Section / Shaft Length:

Item no: 52402-A

Non-insulated wire end ferrules made of high-quality electrolytic copper (Cu-ETP) ensure... more

Close menu

Product information "Uninsulated wire end ferrules"

Non-insulated wire end ferrules made of high-quality electrolytic copper (Cu-ETP) ensure reliable and permanently secure conductor connections in electrical engineering and control panel construction. The ferrules are available for various conductor cross-sections and lengths and are particularly suitable for the professional installation of fine-stranded conductors. The electroplated tin-coated surface ensures good electrical conductivity and reliable corrosion protection.

Advantages

✅ High electrical conductivity thanks to high-quality Cu-ETP copper
✅ Standard-compliant design according to DIN 46228, Part 1, as well as custom dimensions
✅ Electro-tinned surface for reliable and durable conductor connections
✅ Wide selection of cross-sections and lengths for flexible applications

Technical Data

Property	Details
Material	Cu-ETP per DIN EN 13600
Design	Non-insulated
Surface	Electrolytically tin-plated
Standard	DIN 46228, Part 1
Other versions	Custom dimensions
Operating temperature	-35 °C to +105 °C
Tolerances	According to DIN 46228, Part 1
Quality	Highly conductive and compliant with standards
Markings	RoHS, CSA

Product Variants

Cross-sectional area [mm²]	Length L [mm]	D1 [mm]	D2 [mm]	S [mm]	Content	Item No.
0.25	5	0.8	1.7	0.15	1,000	52400
0.25	7	0.8	1.7	0.15	1,000	52113
0.34	5	0.9	1.8	0.15	1,000	52110
0.34	7	0.9	1.8	0.15	1,000	52111
0.5	6	1.0	2.1	0.15	1,000	52402
0.5	8	1.0	2.1	0.15	1,000	52403
0.5	10	1.0	2.1	0.15	1,000	52114
0.5	12	1.0	2.1	0.15	1,000	52115
0.75	6	1.2	2.3	0.15	1,000	52116
0.75	8	1.2	2.3	0.15	1,000	52404
0.75	10	1.2	2.3	0.15	1,000	52117
0.75	12	1.2	2.3	0.15	1,000	52118
0.75	15	1.2	2.3	0.15	1,000	52119
1	6	1.4	2.5	0.15	1,000	52405
1	7	1.4	2.5	0.15	1,000	52121
1	8	1.4	2.5	0.15	1,000	52406
1	10	1.4	2.5	0.15	1,000	52123
1	12	1.4	2.5	0.15	1,000	52124
1	15	1.4	2.5	0.15	1,000	52125
1.5	6	1.7	2.8	0.15	1,000	52408
1.5	7	1.7	2.8	0.15	1,000	52127
1.5	8	1.7	2.8	0.15	1,000	52409
1.5	10	1.7	2.8	0.15	1,000	52407
1.5	12	1.7	2.8	0.15	1,000	52130
1.5	15	1.7	2.8	0.15	1,000	52131
1.5	18	1.7	2.8	0.15	1,000	52132
1.5	20	1.7	2.8	0.15	1,000	52133
2.5	7	2.2	3.4	0.15	1,000	52411
2.5	8	2.2	3.4	0.15	1,000	52135
2.5	10	2.2	3.4	0.15	1,000	52410
2.5	12	2.2	3.4	0.15	1,000	52137
2.5	15	2.2	3.4	0.15	1,000	52138
2.5	18	2.2	3.4	0.15	1,000	52139
2.5	20	2.2	3.4	0.15	1,000	52140
4	9	2.8	4.0	0.2	1,000	52421
4	10	2.8	4.0	0.2	1,000	52422
4	12	2.8	4.0	0.2	1,000	52423
4	15	2.8	4.0	0.2	250	52144
4	18	2.8	4.0	0.2	250	52145
4	20	2.8	4.0	0.2	250	52146
6	10	3.5	4.7	0.2	250	52413
6	12	3.5	4.7	0.2	250	52148
6	15	3.5	4.7	0.2	250	52414
6	18	3.5	4.7	0.2	250	52150
6	20	3.5	4.7	0.2	250	52151
10	12	4.5	5.8	0.2	250	52152
10	15	4.5	5.8	0.2	250	52153
10	18	4.5	5.8	0.2	250	52154
10	20	4.5	5.8	0.2	250	52155
10	25	4.5	5.8	0.2	250	52156
16	12	5.8	7.5	0.2	250	52157
16	15	5.8	7.5	0.2	250	52158
16	18	5.8	7.5	0.2	250	52159
16	20	5.8	7.5	0.2	250	52160
16	25	5.8	7.5	0.2	250	52161
16	32	5.8	7.5	0.2	250	52162
25	12	7.3	9.5	0.22	100	52163
25	15	7.3	9.5	0.22	100	52164
25	18	7.3	9.5	0.22	100	52165
25	25	7.3	9.5	0.22	100	52166
25	32	7.3	9.5	0.22	100	52167
35	15	8.3	11.0	0.22	100	52168
35	18	8.3	11.0	0.22	100	52169
35	20	8.3	11.0	0.22	100	52170
35	22	8.3	11.0	0.22	100	52171
35	25	8.3	11.0	0.22	100	52172
35	32	8.3	11.0	0.22	100	52173
50	18	10.3	13.0	0.3	100	52174
50	22	10.3	13.0	0.3	100	52175
50	25	10.3	13.0	0.3	100	52176
50	32	10.3	13.0	0.3	100	52177
70	25	12.5	15.0	0.4	100	52178
70	32	12.5	15.0	0.4	100	52179
95	25	14.5	17.0	0.4	100	52180
95	30	14.5	17.0	0.4	25	52181
95	32	14.5	17.0	0.4	25	52182
120	32	16.5	19.0	0.5	25	52183
150	32	18.5	21.0	0.5	25	52184
150	38	18.5	21.0	0.5	25	52185
185	32	20.0	23.5	0.6	25	52186
185	40	20.0	23.5	0.6	25	52187
240	40	22.8	25.8	0.6	25	52188

0,5 mm² / 6 mm
