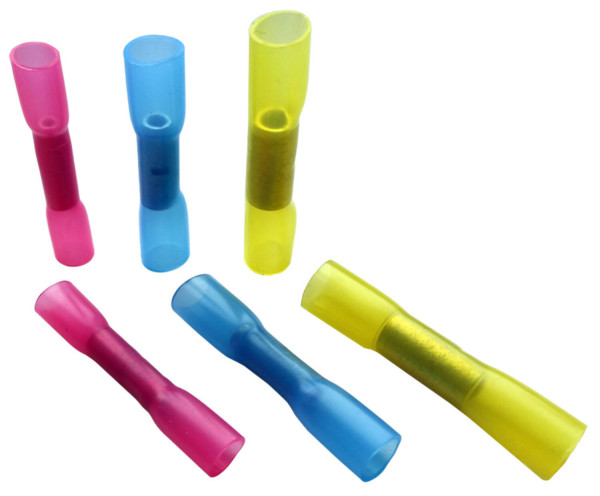

Insulated butt connector with heat-shrink tubing

Stoßverbinder isoliert mit Schrumpfschlauch

Advantages

Free shipping from € 129,- order value
Shipping within 24h*
30 days money back guarantee

Quantity	Unit price (per PU)	Base price
to 10	€30.57 *	€30.57 * / 100 piece
from 11	€26.32 *	€26.32 * / 100 piece

Content: 100 piece

*Prices incl. statutory VAT plus shipping costs

Ready for shipment immediately, delivery time approx. 1-3 working days

Cross-Section / Color / Shaft Length:

Item no: 51118-A

These butt connectors with heat-shrink insulation are suitable for reliably connecting... more

Close menu

Product information "Insulated butt connector with heat-shrink tubing"

These butt connectors with heat-shrink insulation are suitable for reliably connecting multi-strand conductors in electrical installations, automotive manufacturing, and industrial applications. The integrated hot-melt adhesive protects the connection from moisture and corrosion after shrinkage. The electro-tin-plated version made of Cu-ETP enables an electrically safe, bend-resistant, and strain-relieved connection up to a maximum of 600 V. These butt connectors are not suitable for solid conductors.

✅ Protection against moisture and corrosion thanks to heat-shrink tubing with integrated hot-melt adhesive
✅ Reliable connection with high tensile strength even under heavy loads
✅ Watertight, insulated, and bend-resistant connection after shrinking
✅ Easy installation for strain-relieved electrical connections

Technical Data

MATERIAL

Property	Details
Material	Cu-ETP per DIN EN 13600
Insulation	Heat-shrink tubing with integrated hot-melt adhesive
Surface	Electrolytically tinned

TEMPERATURE

Property	Details
Operating temperature	-25 °C to +105 °C
Shrinkage Temperature	Approx. +150 °C

PROPERTIES

Property	Details
Rated voltage	Max. 600 V
Connection after shrinking	Insulating, flexible, strain-relieved, and waterproof
Applications	For strain-relieved connections
Suitable conductors	Multi-strand conductors
Note	Not suitable for solid conductors

Product variants

Cross-sectional area [mm²]	Insulation color	L1 [mm]	L2 [mm]	D1 [mm]	Packaging unit [pcs.]	Item No.
0.2–0.75	transparent	28	15	1.5	100	51118
0.5–1	red	37	15	1.6	100	51119
1.5–2.5	blue	37	15	2.3	100	51120
4–6	yellow	42	15	3.6	50	51121

0,2-0,75 mm² / transparent / 28 mm
