Braided Tubing: Professional Cable Protection for Industry and Automotive Manufacturing
In industrial applications, cables and wires are often subjected to severe mechanical stress. Movement, vibration, or sharp edges can damage the insulation and significantly shorten the service life of the cables. A high-quality braided sleeve provides reliable protection against abrasion and ensures safe cable routing. EMC-direct’s braided sleeves are available by the meter in various diameters and can be precisely tailored to industrial, mechanical engineering, and commercial vehicle applications. Discover our product range!
PET or Polyamide (PA): The Right Material for Your Application
The choice of material has a decisive impact on the protective performance of a textile hose. PET (polyethylene terephthalate) and polyamide (PA) offer different property profiles for different application scenarios. When making a selection, in addition to the material, the braiding angle, nominal diameter, and maximum expansion should also be taken into account, as these factors significantly influence flexibility and fit in the application.
| Feature | PET Braided Tube | PA braided tubing |
| Temperature Range | −40 °C to +150 °C |
−40 °C to +125 °C |
| Abrasion resistance | Medium to high |
High to very high (heavy-duty) |
| Resistance | Flame-retardant per UL 94 V0 (only one variant) |
Oils, greases, fuels |
| Typical applications | Control cabinets, mechanical engineering, plant engineering |
Engine compartment, chassis, commercial vehicles |
| Installation type | Closed, self-sealing, cold-cut |
Closed, heavy-duty with hook-and-loop fastener, cold-cut |
PET variants certified to the UL 94 V0 fire safety standard are suitable for safety-critical applications where flame retardancy is required, such as in automation or control cabinet construction. PA tubing is the preferred choice for automotive engine compartments and outdoor applications, where contact with oils, greases, and UV radiation is unavoidable.
Get a customized quote as a business customer!
Contact us directly.
Get a free consultation now: +49 2369 9846915
An Overview of Braided Hose Designs
Not every textile hose is suitable for every application. Depending on requirements for cable protection, flexibility, or temperature resistance, various designs are available.
Closed Conduit
For the initial assembly of cable bundles. The cables are fully inserted before installation so that the tubing completely encloses the entire bundle without any gaps. This provides exceptionally high protection against abrasion, dirt, and mechanical stress—ideal for permanent and static installations.
Self-closing wrap
Automatically wraps around the cable bundle after opening and closes on its own. This design allows for quick and easy retrofitting without having to remove existing cables. Particularly suitable for maintenance areas or retrofitting cable bundles during ongoing operations.
Velcro-Fastening Textile Hose
Can be flexibly opened and resealed, allowing access to individual wires at any time. This design is ideal for applications requiring regular servicing or frequent modifications to the wiring harness. It combines easy access with reliable protection when closed.
Cold-cut braided tubing
Can be cut to length with standard scissors without the cut edge fraying. This eliminates the need for hot-cutting tools, making installation particularly flexible and time-efficient. This variant is ideal for installations directly on the construction site or for last-minute adjustments.
Whether in control cabinet construction, mechanical engineering, or electrical installation—with the right braided hose, you can ensure safe and neat cable protection. EMC-direct offers you a wide selection for professional applications. Browse through our product range!

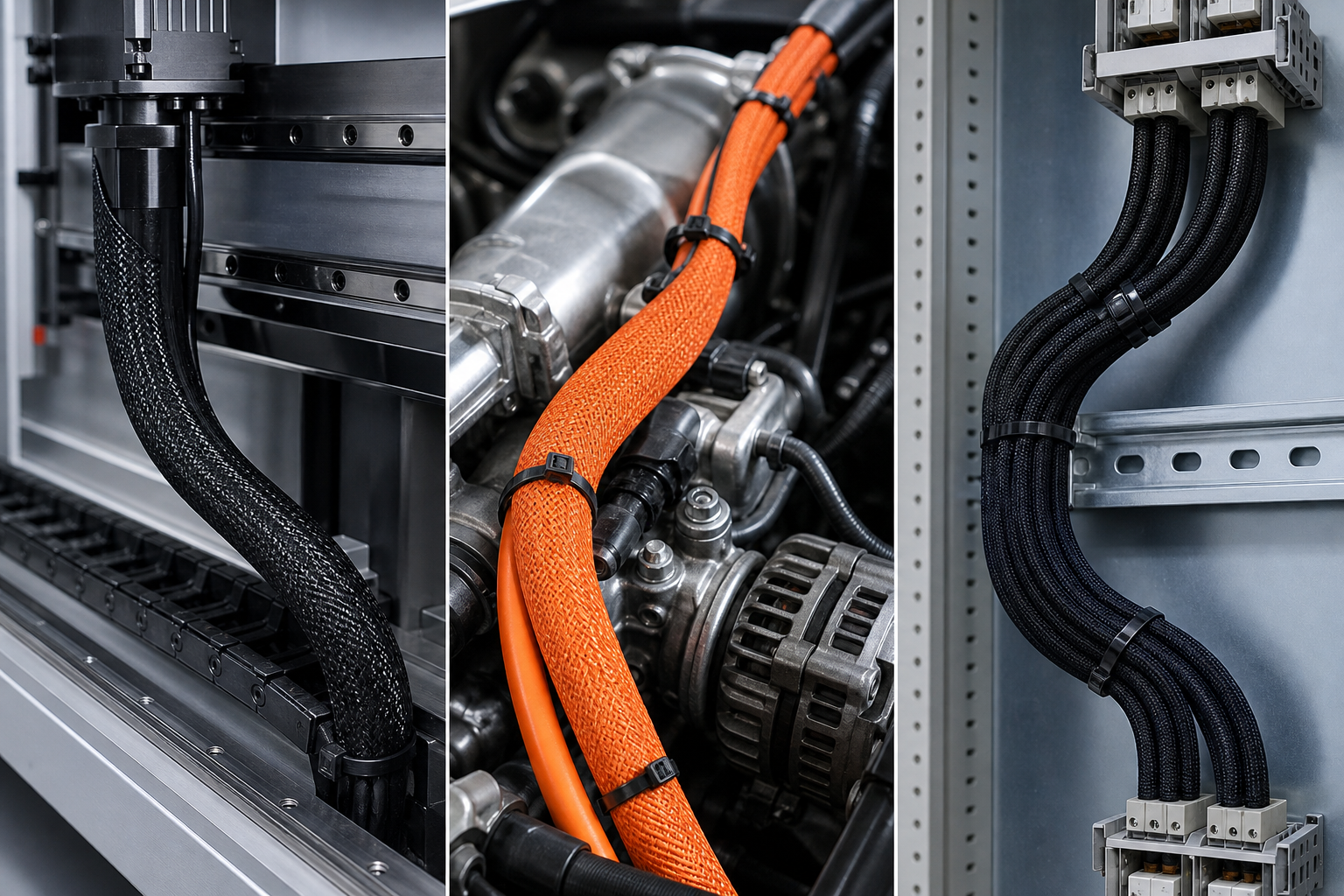

Applications for Braided Hose – Mechanical Engineering, Commercial Vehicle Manufacturing, and Control Cabinet Construction
The requirements for a textile hose vary significantly depending on the industry. While flexibility is the primary requirement in mechanical engineering, abrasion resistance and chemical resistance are the main priorities in automotive manufacturing.
Mechanical Engineering & Plant Construction
Flexible textile hoses for dynamic motion axes. Self-closing or Velcro-fastening designs enable quick retrofitting without disassembly. Discover numerous other solutions for mechanical engineering.
Commercial Vehicle & Rail Transportation
Heavy-duty PA hoses for extreme edge contact, vibration, and fuel resistance. Fire safety requirements per EN 45545-2 are met by certified variants. We also offer numerous other solutions for commercial vehicle manufacturing.
Control Cabinet Construction & Electrical Engineering
Cost-effective standard PET cable protection tubes for permanent installation and organized cable management. Flame-retardant versions compliant with UL 94 V0 are available for safety-critical areas.
Braided Tubing from EMC-direct: The Right Solution for Your Cable Protection
EMC-direct offers a comprehensive range of braided tubing for a wide variety of applications in industry, mechanical engineering, and electrical engineering—see for yourself!
With a high-quality textile hose from EMC-direct, you can reliably protect your cables and wires and benefit from durable products that meet the demands of professional applications—order now!
