Fastening clamp with welded stud receptacle—above the stud

Quantity	Unit price (per PU)	Base price
to 9	€25.79 *	€25.79 * / 100 Stück
from 10	€22.56 *	€22.56 * / 100 Stück
from 20	€19.34 *	€19.34 * / 100 Stück

Content: 100 Stück

*Prices incl. statutory VAT plus shipping costs

Ready for shipment immediately, delivery time approx. 1-3 working days

Item no: 94101-E

One-piece – space-saving cable routing directly above the weld stud The cable tie with a... more

Close menu

Product information "Fastening clamp with welded stud receptacle—above the stud"

One-piece – space-saving cable routing directly above the weld stud

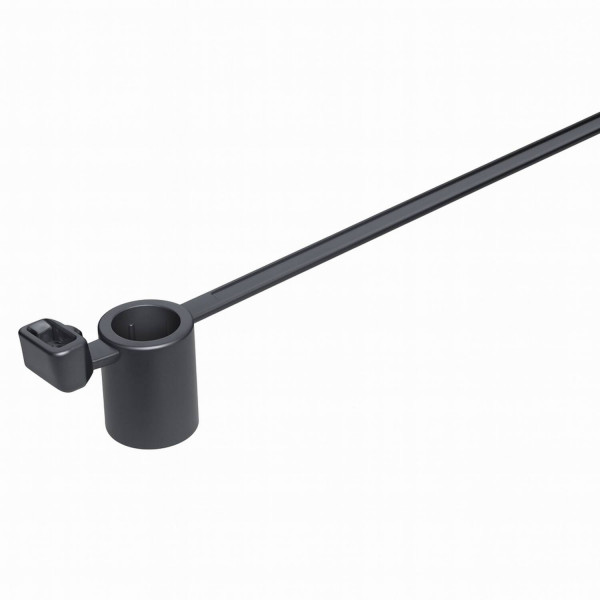

The cable tie with a welded stud mount is the ideal solution for routing cables above the welded stud. Thanks to its one-piece design, the cable tie can be installed without tools by simply snapping the head into place on the stud. The heat-stabilized polyamide 6.6 ensures UV and weather resistance, high mechanical stability, and a long service life —perfect for use in automotive and mechanical engineering.

✅ Cable routing directly above the weld stud—space-saving and stable
✅ Tool-free installation with a secure snap-lock mechanism
✅ Heat-stable, impact-resistant, and UV- and weather-resistant
✅ Ideal for automotive engineering, mechanical engineering, and industrial applications

Technical Specifications

Property	Details
Material	PA 6.6 HS (polyamide 6.6 / heat-stabilized)
Operating Temperature	-40 °C to +125 °C
Properties	Heat-stabilized, impact-resistant, UV-weather-resistant, self-extinguishing according to UL94 V-2
Chemical resistance	Resistant to common liquids, oils, greases, and derivatives; limited resistance to acids
Standards	REACH, RoHS

Product variants

Width [mm]	Length [mm]	Hole Diameter	Max. bundling [mm]	Min. tensile strength [N]	Color	Quantity [pcs.]	Item No.
4.0	160	M5	35	200	black	100	94101
4.0	160	M6	35	200	black	100	94102

160x4 / M5
