Fastening clamp with welded stud receptacle – 2-piece

Quantity	Unit price (per PU)	Base price
to 9	€29.01 *	€29.01 * / 100 Stück
from 10	€25.38 *	€25.38 * / 100 Stück
from 20	€21.76 *	€21.76 * / 100 Stück

Content: 100 Stück

*Prices incl. statutory VAT plus shipping costs

Ready for shipment immediately, delivery time approx. 1-3 working days

Item no: 94701-E

Flexible cable routing over M5 bolts – pre-assemblable and adaptable for various cable routes... more

Close menu

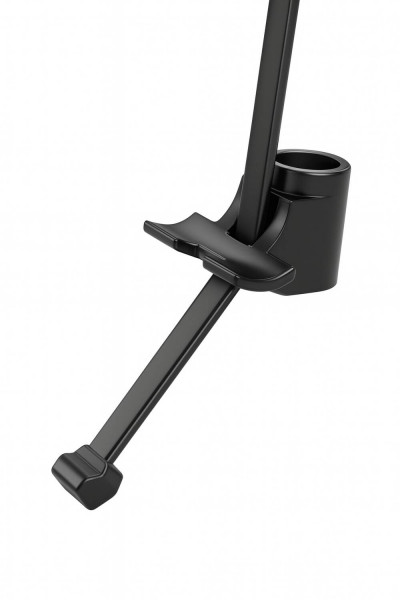

Product information "Fastening clamp with welded stud receptacle – 2-piece"

Flexible cable routing over M5 bolts – pre-assemblable and adaptable for various cable routes

The two-piece mounting clamp with a welded stud receptacle is the ideal solution for flexible cable routing over the stud. Because the clip and cable clamp are separate components, the clamp can be pre-assembled or adjusted later, which significantly reduces installation time. The heat-stabilized PA 6.6 ensures high strength, UV resistance, and chemical resistance, even under intense thermal or mechanical stress. Perfectly suited for automotive, machinery, and plant engineering, where variable cable routing is required.

✅ Two-piece design for easy pre-assembly and flexible adjustment
✅ Secure cable routing over a welded stud (M5)
✅ Quick, tool-free installation with a vibration-resistant fit
✅ Made of heat-stabilized, impact-resistant, and UV-resistant PA 6.6

Technical Specifications

Feature	Details
Material	PA 6.6 HS (polyamide 6.6, heat-stabilized)
Operating Temperature	-40 °C to +125 °C
Properties	Heat-stabilized, impact-resistant, UV- and weather-resistant, self-extinguishing according to UL94 V-2
Chemical resistance	Very good resistance to oils, greases, solvents, and common industrial fluids
Standards	REACH, RoHS

Product variants

Width [mm]	Length [mm]	Hole Diameter	Max. bundling [mm]	Min. tensile strength [N]	Color	Quantity [pcs.]	Item No.
3.6	150	M5	35	135	black	100	94701
4.6	150	M5	35	220	black	100	94702
4.6	200	M5	45	220	black	100	94703

150x3,6 / M5
