Cable protection and fastening in commercial vehicle construction
In commercial vehicle, body and mechanical engineering, suitable cable protection and fastening components ensure function under vibration, UV, temperature and contact with media. EMC-direct supplies solutions suitable for series production for frames, bodies and engine edge zones: Cable ties (incl. heat/UV-resistant variants), fastening clips and bases, corrugated tubes (PA6, PP-UV/fire protection), textile/braided sleeves and 2:1-6:1 shrink sleeves - process-safe in cycle assembly.
- ISO 9001:2015
- Single point of contact
- High availability
- Frame & call-off orders
- Stockpiling/safety stock
- MDS/Certificates
- >90 % regular customer rate
Select components by environment
Requirements in commercial vehicle construction
The requirements for commercial vehicle construction are significantly higher than for cable protection for motor vehicles or in the aftermarket sector. The construction and components must be designed for continuous loads and industrial production processes. The most important requirements include
- Media resistance: contact with oil, diesel, AdBlue, water or cleaning chemicals requires resistant materials.
- UV and weather resistance: Particularly essential for outdoor cables and cable protection conduits.
- Temperature resistance: Different installation locations require solutions for extreme heat or cold.
- Vibration & abrasion resistance: Permanent mechanical stress must not damage the cables.
- Fire protection requirements: Standards such as UL94 or FMVSS 302 must be met.
- Process capability: Components must be able to be assembled quickly and reproducibly in series.
Are you a corporate customer and would like to order large quantities?
Then contact our office staff directly!
Free advice: +49 2369 9846915
Components by environment
To simplify design and material planning, we have subdivided our range according to the specific requirements of the installation locations in the vehicle. Select the appropriate environment to find the technically optimized components for your cable protection in vehicle construction:
Frame & underbody
Cable ties: PA12 UV (extremely weather-resistant), PA66 UV, stainless steel ties.
Fasteners: Edge clips for tool-free installation, slat base clips, heavy-duty and stainless steel bases.

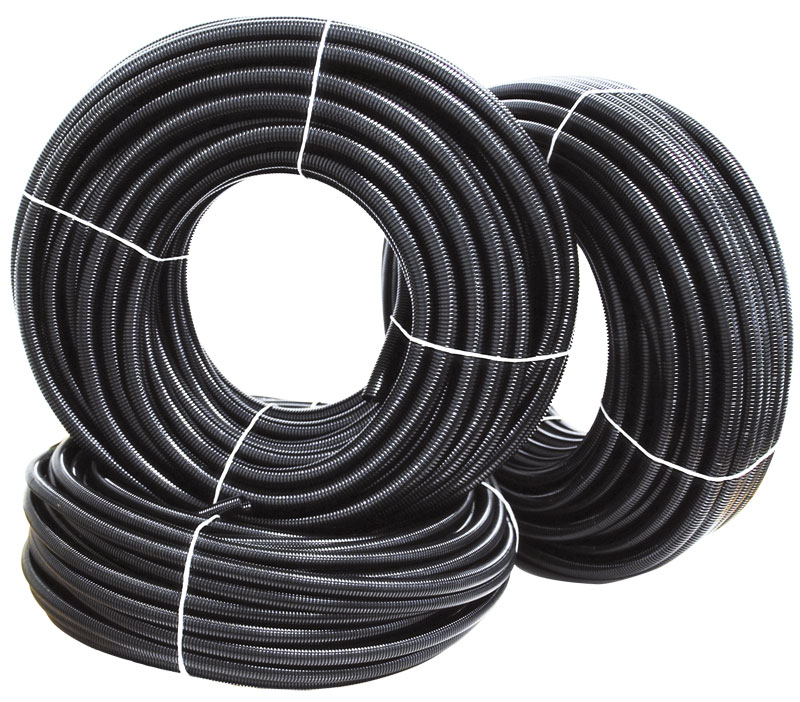

Corrugated conduit: PA6 (highly abrasion-resistant), PP UV (long-term outdoor stability).
Textile hoses: PA heavy-duty braiding, PET braiding.
Heat-shrink tubing: Polyolefin 3:1/4:1 with internal adhesive for watertight sealing.
Motor edge zones & hotspots
Cable ties: PA66HS (heat-stabilized), PA46 (high temperature), plastic-coated stainless steel.
Fasteners: Welding stud mounts, heavy-duty screw base.
Corrugated conduit: PA6 (high thermal load capacity), PP BS (fire protection, flame retardant).
Heat-shrink tubing: Viton (highly resistant to chemicals and heat), polyolefin with internal adhesive.
Cabin & interior
Cable ties: PA66 HPER (high holding force with high toughness).
Fasteners: Easy-to-fit slat foot and edge clips.
Textile hoses: PET braiding (anti-drumming), PET wrap (self-closing for easy retrofitting).
Heat-shrink tubing: Polyolefin 2:1/3:1 for standard insulation and labeling.
Specialized in technology for commercial vehicles and mechanical engineering
At EMC-direct, we do not view components as isolated individual items, but as an integral part of complex cable management systems. Our expertise lies in the selection of the exact materials according to application, load spectrum, temperature and media resistance as well as the specific installation architecture of your vehicle type.
Our aim is to achieve functionally reliable integration in series and special vehicles. We pay consistent attention to vibration resistance, UV stability and fire protection conformity. Thanks to our in-depth industry experience, we ensure that every component is process-capable and economical for your individual assembly process.
- Products such as cable protection for motor vehicles, corrugated conduit for motor vehicles or PVC insulating conduit are not intended as isolated individual items, but as part of complete cable management systems.
- The selection is not based on "standard sizes for all", but on the application, load, temperature range and vehicle architecture.
- Instead of pure product availability, the focus is on functionally reliable integration into series and special vehicles.
Call us now for more information
Our services for the industry
We understand the logistical and quality requirements of modern vehicle production. That's why we offer a service package that goes beyond the product and takes the pressure off your supply chain:
- Blanket & call-off orders: Including proactive deadline tracking to ensure your material availability.
- Stockpiling & safety stock: We keep defined quantities available for you to cover short-term peaks in demand.
- Individual packaging: We supply packaging, labels and ready-to-assemble sets exactly according to your factory specifications.
- Special parts & re-engineering: Together with you, we develop special solutions according to the "design-to-cost" principle - from initial sampling to series release.
- Quality & documentation package: We support your quality assurance with ISO certificates, IMDS entries and comprehensive test reports.
Practical expertise
Use our technical expertise for your planning. In our technical articles, we share practical knowledge on the topics of cable protection, fastening technology and modern crimping methods.
External trade press
Our innovative strength is regularly confirmed by independent tests. A current highlight for your tool pool:

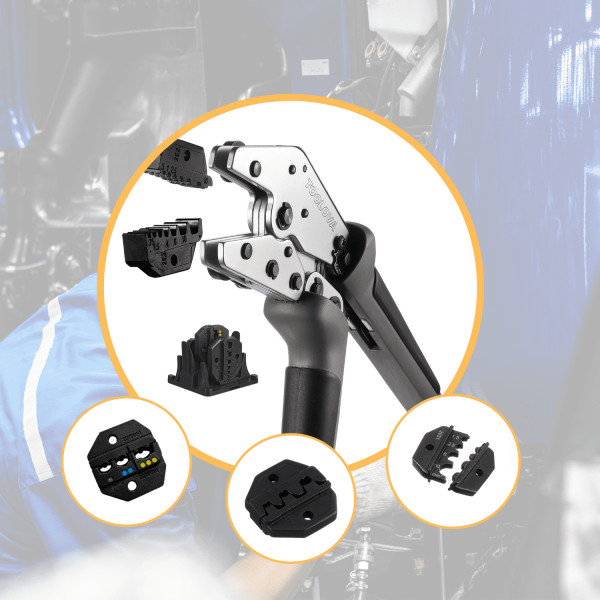

"TF Plus crimping pliers in practical test: very good / test winner." - kfz-betrieb, issue 51-52/2025.
