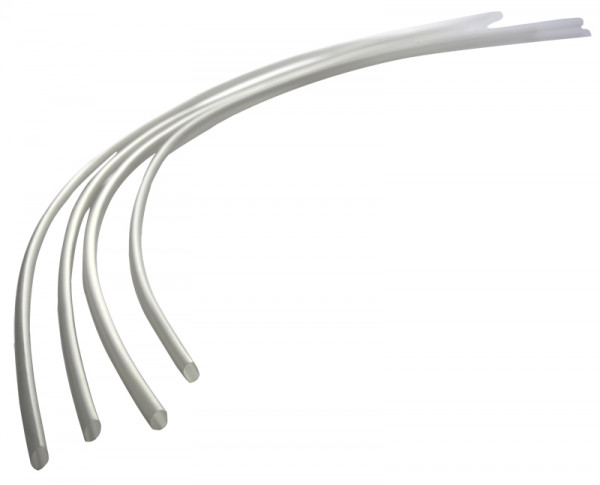

Thick-walled, transparent heat-shrink tubing with adhesive, 5:1, 1.22 m

Quantity	Unit price (per PU)	Base price
to 9	€13.47 *	€13.47 * / 1 Stück
from 10	€12.13 *	€12.13 * / 1 Stück
from 20	€11.45 *	€11.45 * / 1 Stück
from 40	€10.78 *	€10.78 * / 1 Stück

Content: 1 Stück

*Prices incl. statutory VAT plus shipping costs

Ready for shipment immediately, delivery time approx. 1-3 working days

Item no: 14034-C

5:1 Polyolefin Heat-Shrink Tubing, Thick-Walled with Adhesive, on a Spool, Transparent, Ø 11.8 /... more

Close menu

Product information "Thick-walled, transparent heat-shrink tubing with adhesive, 5:1, 1.22 m"

5:1 Polyolefin Heat-Shrink Tubing, Thick-Walled with Adhesive, on a Spool, Transparent, Ø 11.8 / 2.1 mm

Thick-walled heat-shrink tubing made of radiation-crosslinked polyolefin with an internal hot-melt adhesive for permanently sealed, mechanically robust cable connections. Ideal for electrical installations, industrial applications, and automotive manufacturing where there are large differences in diameter and harsh environments. The 5:1 shrink ratio accommodates wide tolerances and provides a watertight seal at connection points. Transparent tube stock allows for visual inspection of crimps, solder joints, and markings.

✅ 5:1 shrink ratio for large tolerances and a form-fit seal
✅ Thick-walled with internal adhesive: watertight, vibration-resistant, and provides strain relief
✅ Flame-retardant jacket, high electrical strength, chemically resistant
✅ 1.22 m roll for precise cutting without ring tension

Technical Specifications

Property	Details
Material	Radiation-crosslinked polyolefin, cadmium- and lead-free
Shrink ratio	approx. 5:1
Diameter before shrinking	11.8 mm
Diameter after shrinkage	2.1 mm
Wall thickness before shrinkage	0.8 mm
Wall thickness after shrinkage	2.5 mm
Design	Thick-walled, with hot-melt adhesive (inside)
Color	Transparent
Operating temperature	approx. -55 °C to +110 °C
Shrink temperature	approx. +120 °C
Melting point of adhesive	approx. +92 °C
Fire resistance	Flamm-retardant jacket
Chemical resistance	Resistant to common liquids and solvents
Corrosion behavior	Non-corrosive, even with copper
Longitudinal shrinkage	max. 10%
Dielectric strength	approx. 20 kV/mm
Tensile strength	10.4 MPa (N/mm²)
Rod length	1.22 m
Packaging unit (PU)	1 m

Note: This product is sold by the rod (1.22 m). Rolled versions are available here: Thick-walled with adhesive – roll (5:1 polyolefin).

Ø 6.4 / 1.2 mm, transparent, 100-meter roll, Item No. 14030 Ø 8.0 / 1.5 mm, transparent, 100-meter roll, Item No. 14031
